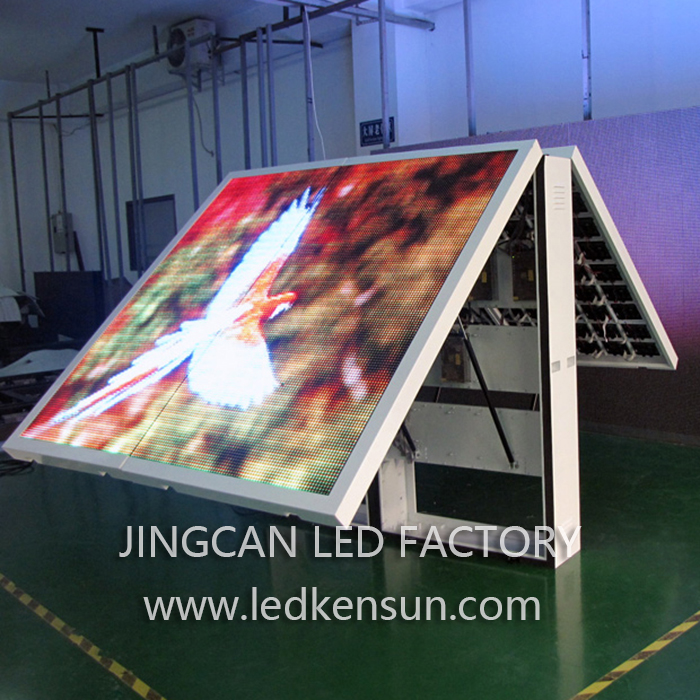

Double Sided P10 Outdoor LED Display Advertising Board , Front Access Maintained
Quick Detail:
1) Stable quality: Opto chip set;
2) High brightness:>6500 nits;
3) Scan driver:1/4 voltage;
4) Module size(L*W):320*160mm;
Competitive Advantages:
1) Stable quality and fast Response;
2) Short delivery,effective production;
3) Sample order,trial order be acceptable;
4) Good communication;
5) 2 years warranty;
Applications Occasions:
Sports,advertising,traffic,entertainment,stage,events,stadium,train station,bus station,shopping center, airport, exhibitions, car shows, fashion shows, concerts, ceremonies, etc
Features:
Vivid and exact picture, minimum noise, advanced test equipment, support any PC operation system and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle. High brightness, this is very important for South African market, Brazil market, no matter the sunshine spot, our high brightness can work well under the big sunshine. Stable performances, our JINGCAN LED FACTORY brands can gurantee you this , you have our words, the best sales services before&after sale.
Outdoor Advertising P10 SMD LED Display |
1 | Pixel Configuration | 1R1G1B |
2 | Physics Distance Between Pixels | 10mm |
3 | Physics Pixel Density | 10,000 Pixel/m2 |
4 | Module Size (W x H) | 160mmx160mm |
5 | Physics Pixel / Module | 16x16=256 |
6 | Cabinet Size (W x H x T) | 960mmx960mmx150mm |
7 | Physics Pixel / Cabinet | 96x96=9,216 |
8 | Cabinet Weight | 42kg |
9 | Cabinet Material | Cold Rolled Steel |
11 | Brightness | >5000cd/m2 |
12 | Viewing Distance | >10m |
13 | Power Consumption (W/m2) | MAX 1000; Average 300 |
14 | Driver Mode | 1/4 scan |
15 | Led Life | 100,000 hours |
16 | Supply Voltage | AC220V/50HZ; AC110V/60HZ |
17 | Operating Temperature | -40ºC~+60ºC |
18 | Operating Humidity | 10%-90% |
19 | Storage Temperature | -45ºC~+65ºC |
20 | Viewing Angle | Horizontal:120°; Vertical: 120° |
21 | Grey Scale | Red, green, blue each 16k |
22 | Display Colors | 4096 Billion |
23 | Refresh Rate | 300HZ-3000HZ adjustable |
24 | IP Rating | Front IP65 waterproof dust-proof |
25 | Display Capability | Video, Graphic, Text, flash
|
